Sound phase comparator for VDS / VIS
Application:
- Establish concordance relations between two phases.
- Suitable for connection to test points of VIS or VDS indicators or their interfaces. It works on separable capacitive dividers.
- Does not work on Schneider Electric type V2 cells.
Features:
- Designed for high and medium impedance voltage dividers (HR - MR)
- Upon connection, the comparison is indicated by:
- Sound signal if significant phase shift between the two phases,
- Absence of audible signal and lighting of the green diode if there is no phase difference between the phases.
| Reference | Dimensions (mm) | Use | Weight (kg) |
|---|---|---|---|

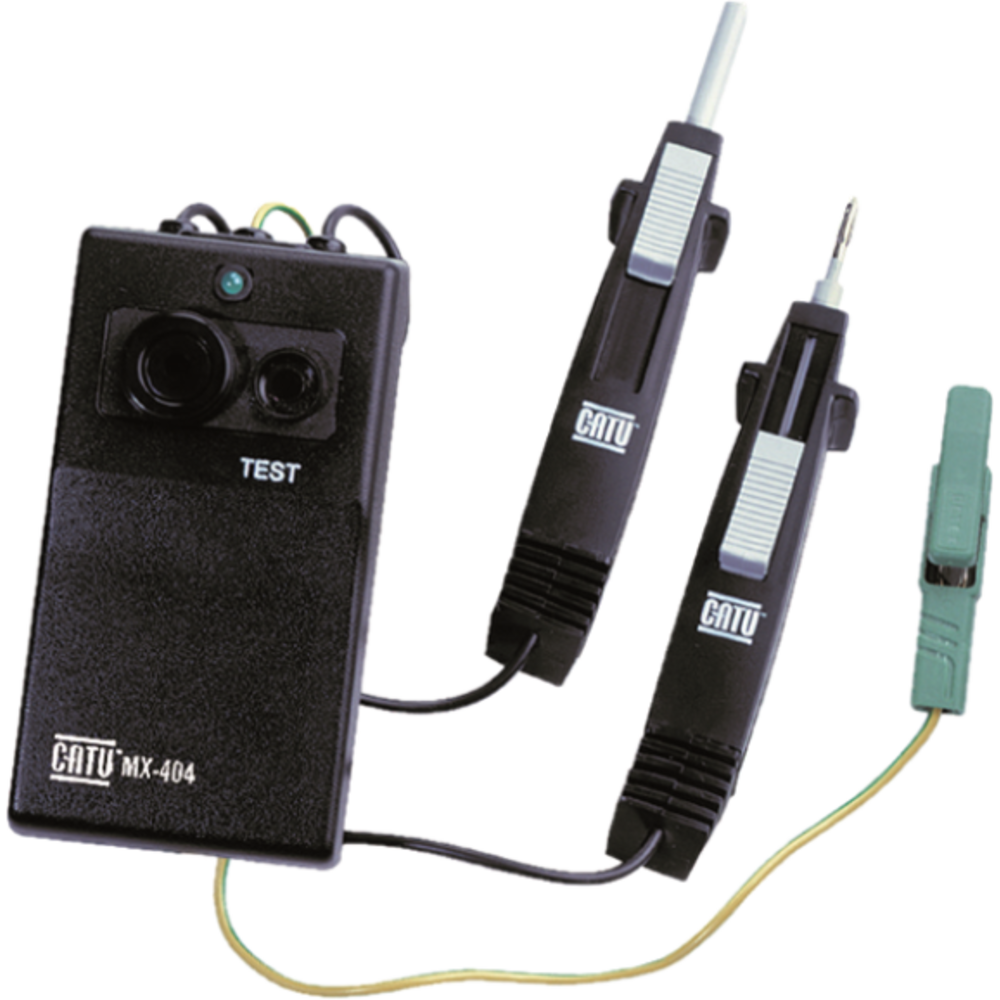

| MX-404 | 145 x 80 x 42 | Indoor/Outdoor | 0.3 |
